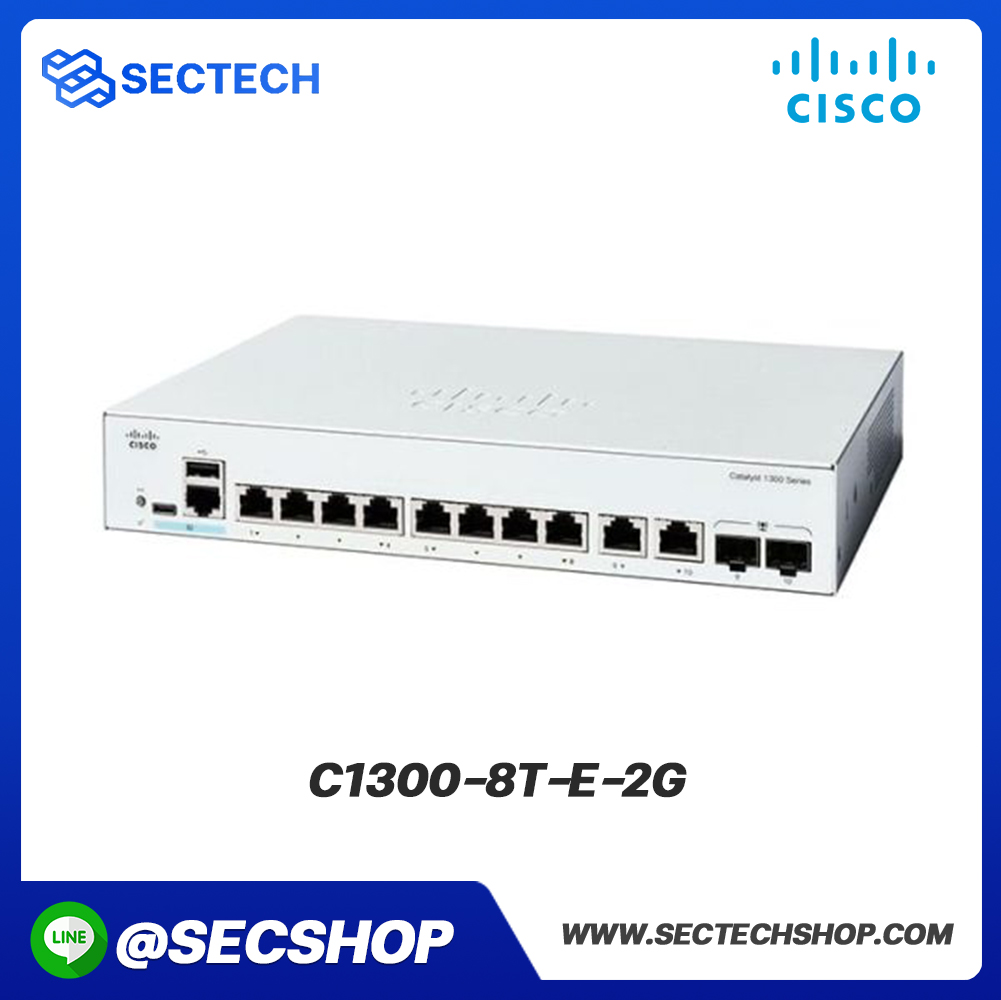

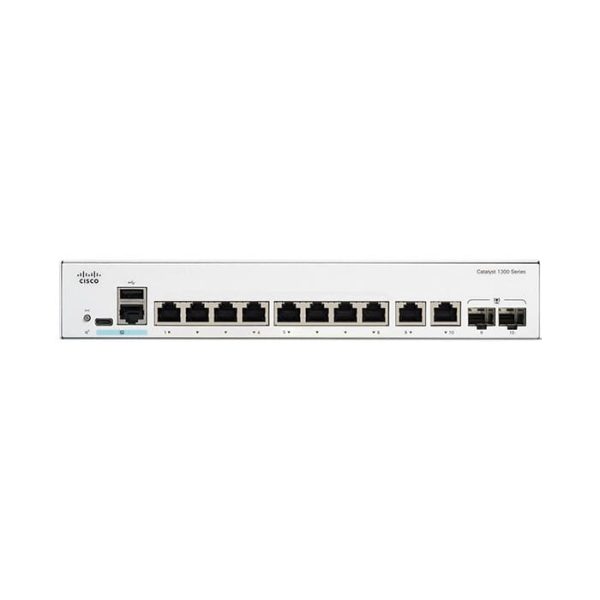

สวิตช์ Cisco รุ่น C1300-8T-E-2G
Catalyst 1300 Series 8G/2SFP or 2G
9810.00฿
สวิตช์ Cisco รุ่น C1300-8T-E-2G
Catalyst 1300 Series 8G/2SFP or 2G
Standards and Protocols : IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3ae 10 Gbps Ethernet over fiber for LAN, IEEE 802.3an 10GBASE-T 10 Gbps Ethernet over copper twisted pair cable, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w Rapid STP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication
Interface
8x 10/100/1000 Mpbs
2x Gigabit copper/SFP combo ports
USB Type C port
Switching Type : Advanced Layer 3
Switching Capacity : 20Gbps
Casing : Metal
Package Contents
Cisco Catalyst 1300 Series Switch
Power cord (power adapter for select 8-port and 16-port SKUs)
Mounting Kit
Pointer card
รายการ | รายละเอียด |
Brand | CISCO |
Model | C1300-8T-E-2G (Catalyst 1300 Series) |
CPU / Memory | ARM dual-core 1.4 GHz / Flash 512 MB / Packet Buffer 1.5 MB |
Switching Capacity | 20.0 Gbps |
MAC Address Table | 8K addresses |
Jumbo Frame | สูงสุด 9000 bytes (Default MTU 2000 bytes) |
VLAN | รองรับสูงสุด 4,093 VLANs (Port-based, 802.1Q, Private VLAN, Guest VLAN, ASV) |
Security | SSL, SSH, IEEE 802.1X, Port security, RADIUS, ACLs, DoS prevention |
Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3ad, 802.3z, 802.3x, 802.1D, 802.1Q/p, 802.1w, 802.1s |
Management | Cisco Business mobile app, Web user interface |
Network Interface | 8x Gigabit Ethernet / 2x Gigabit Ethernet combo |
USB Port | USB Type C port |
Power Consumption | 10.65W (PoE: None) |
MTBF | 2,171,669 ชั่วโมง (ที่ 25°C) |
Casing & Fan | วัสดุเหล็ก (Metal) / ไม่มีพัดลม (Fanless) |
Dimensions & Weight | 26.80 x 18.50 x 4.40 cm / 1.39 kg |
