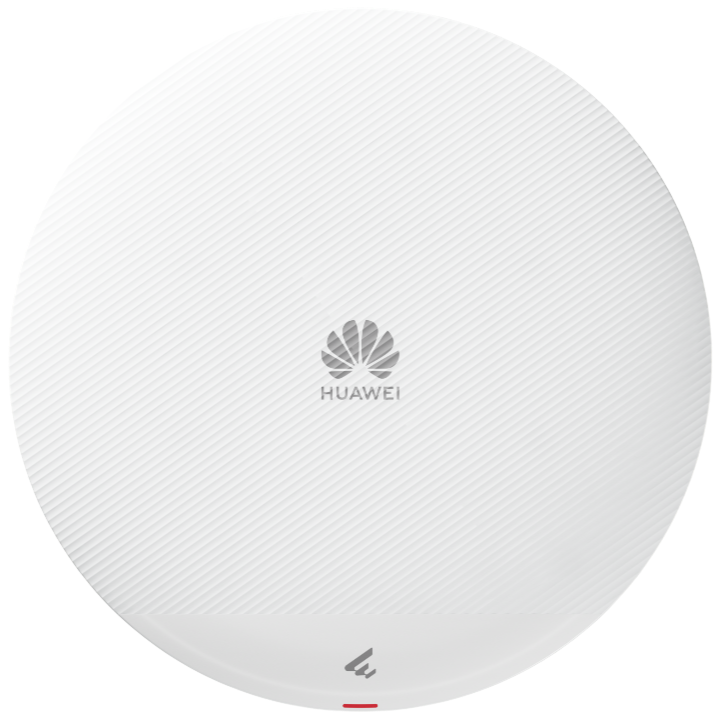

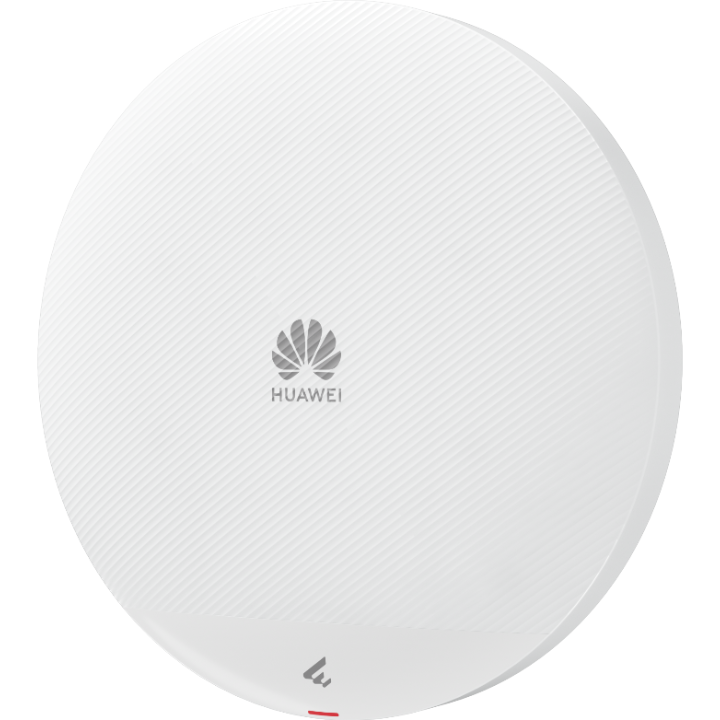

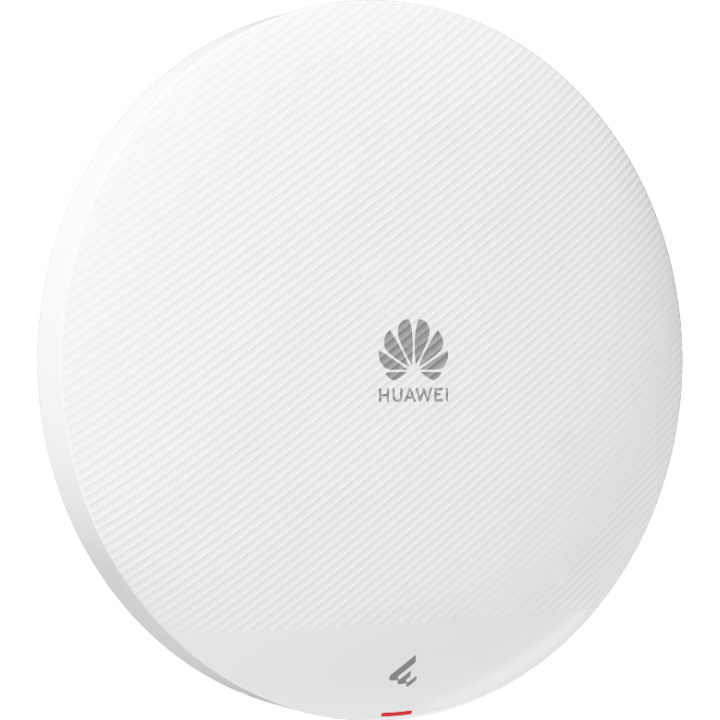

ตัวกระจายสัญญาณ Huawei รุ่น HW-AP362E
Settled AP | Wi-Fi 6 | 2.975 Gbps device rate | Dual-radio | 100 access users recommended | 23 dBm transmit power | Smart antenna | 20 m optimal coverage range
3390.00฿
ตัวกระจายสัญญาณ Huawei รุ่น HW-AP362E
Settled AP | Wi-Fi 6 | 2.975 Gbps device rate | Dual-radio | 100 access users recommended | 23 dBm transmit power | Smart antenna | 20 m optimal coverage range
Highlight Features
Supports Wi-Fi 6 (802.11ax) standard to improve access capacity, bandwidth, and reduce latency in high-density scenarios.
Features MU-MIMO on both 2.4 GHz and 5 GHz bands, supporting up to four spatial streams for simultaneous data transmission to multiple users.
Utilizes 1024-QAM modulation to increase data transmission efficiency by 25% compared to the 802.11ac standard.
Provides high-speed dual-band access with 160 MHz bandwidth, reaching peak rates of up to 2.975 Gbps (0.575 Gbps on 2.4 GHz and 2.4 Gbps on 5 GHz).
Employs smart antenna array technology and intelligent algorithms for accurate coverage, interference suppression, and optimal signal quality.
Ensures comprehensive security with wireless authentication/encryption (WPA3-SAE, 802.1X, PPSK) and wired protection via CAPWAP and DTLS encryption.
Includes automatic radio calibration to adjust transmit power and working channels based on environmental interference and load.
Supports cloud management for simplified networking and authentication (PSK/Portal) without the need for a local WAC or server.
Facilitates quick deployment and O&M through the HUAWEI eKit App using Wi-Fi-based onboarding or barcode scanning.
Download Datasheet
Feature | Specification |
Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax |
Installation Type | Wall, Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod) |
Optimal Signal Distance (m) | 20 |
Max Number of Access Users | 128 |
Recommended Number of Access Users | 100 |
Device Rate | 2.975 Gbps |
Maximum number of physical ports | GE (RJ45) x 1, 10M/100M/1000M auto-sensing |
Radio number | 2 |
Maximum channel bandwidth [MHz] | Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 160 MHz |
Maximum transmit power | 2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power) |
MIMO spatial streams | Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 |
Maximum power consumption [W] | 9.4 |
Input voltage range [V] | PoE: 802.3af |
Dimensions without packaging (H x W x D) | Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.) |
Dimensions with packaging (H x W x D) | 200 mm x 231 mm x 61 mm (7.87 in. x 9.09 in. x 2.40 in.) |
Weight without packaging [kg(lb)] | 0.45 kg (0.99 lb) |
Weight with packaging [kg(lb)] | 0.75 kg (1.65 lb) |
Long-term operating temperature | 0°C to 40°C (32°F to 104°F) |
Long-term operating relative humidity | 5% RH to 95% RH, non-condensing |
Radio interface | Built-in smart antennas |
Antenna gain | 2.4G: 4 dBi/chain (peak) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain) |
Operating frequency band | 2.4GHz, 5GHz |
