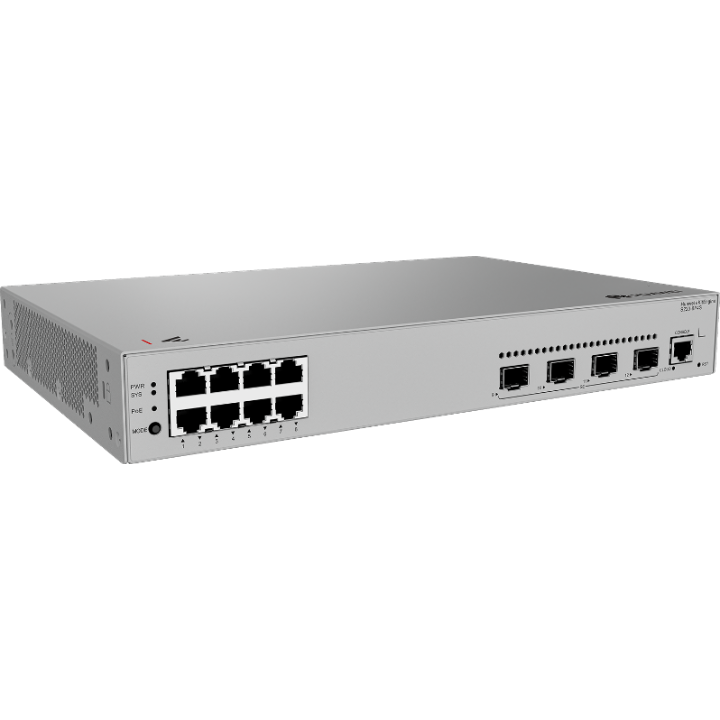

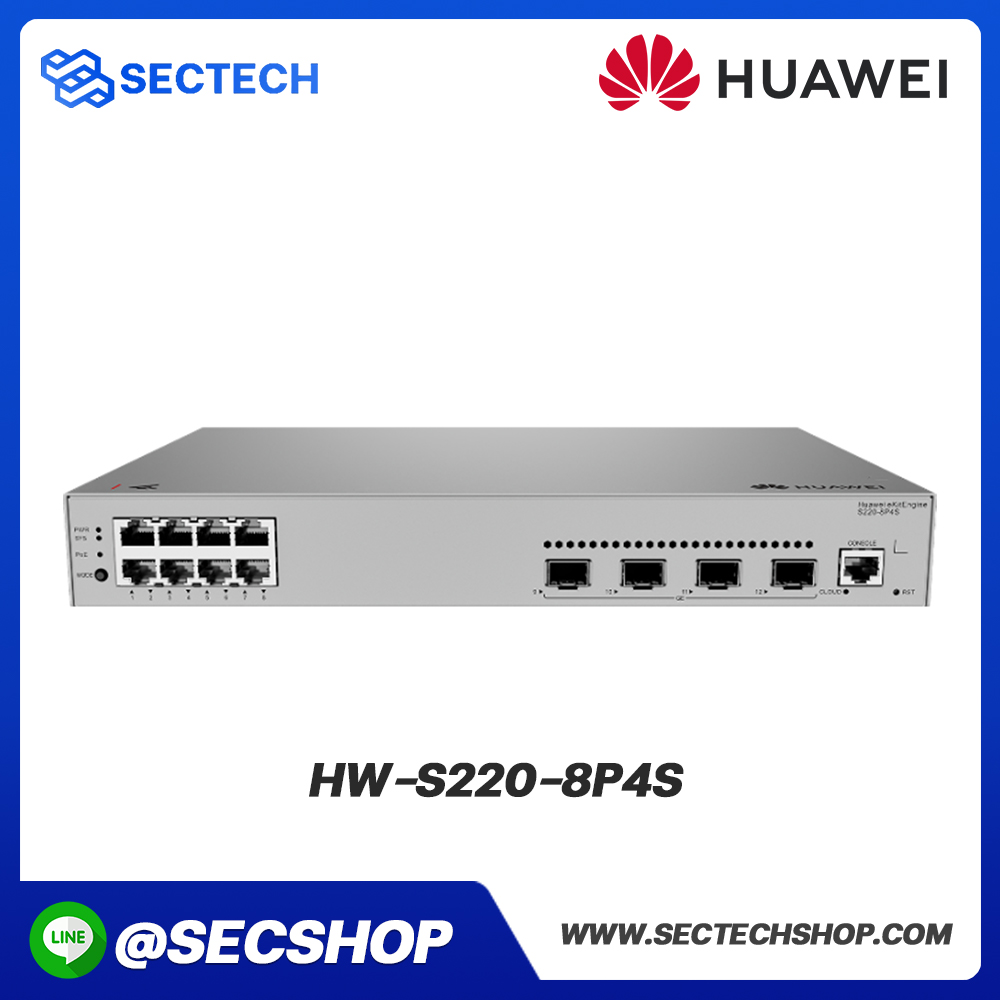

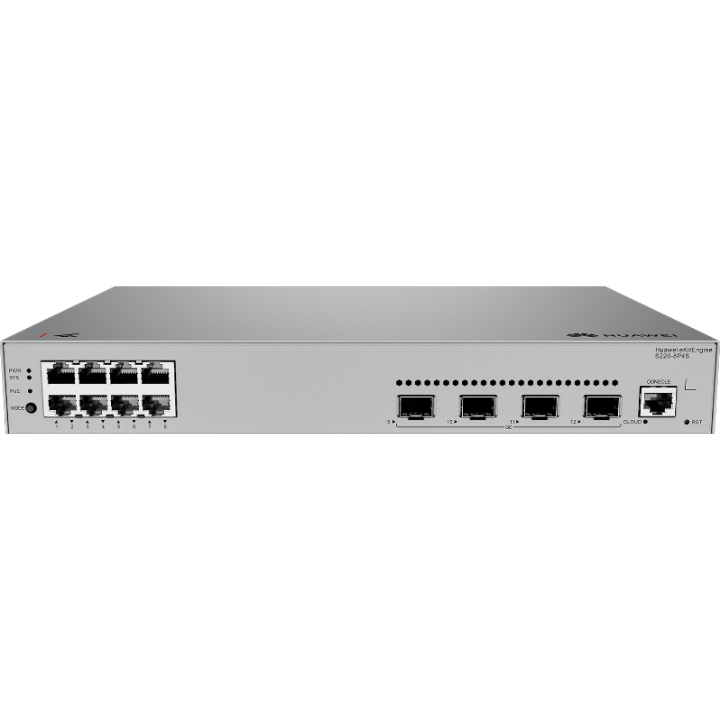

สวิตซ์ Huawei รุ่น HW-S220-8P4S
8 x 10/100/1000BASE-T，4 x GE SFP ports ports | 125W PoE+ | built-in AC power | Packet forwarding rate: 18 Mpps | Switching capacity: 24 Gbit/s
7160.00฿
สวิตซ์ Huawei รุ่น HW-S220-8P4S
8 x 10/100/1000BASE-T，4 x GE SFP ports ports | 125W PoE+ | built-in AC power | Packet forwarding rate: 18 Mpps | Switching capacity: 24 Gbit/s
Highlight Features
Support flexible Ethernet networking with STP, RSTP, MSTP, and the latest ERPS (ITU-T G.8032) standard for millisecond-level protection switching.
Offer diversified security control through MAC address, 802.1X, and multi-mode authentication with dynamic policy delivery (VLAN, QoS, ACL).
Defend against DoS attacks (SYN flood, Land, Smurf, ICMP flood) and user-targeted attacks (IP/MAC spoofing, bogus DHCP servers).
Utilize DHCP snooping to maintain binding entries and ensure users connect only to authorized DHCP servers via trusted ports.
Facilitate easy operations and maintenance through multiple management interfaces including SNMP, CLI, Web system, and SSH.
Feature Fast PoE to supply power to PDs within seconds of powering on, even during a switch restart, significantly reducing downtime.
Support smart upgrades via HOUP to simplify procedures, reduce maintenance costs, and minimize the risk of failure.
Enable cloud management through the Huawei eKit App for remote configuration and monitoring, reducing onsite manpower and OPEX.
Provide flexibility to switch between cloud management and on-premise modes to maximize ROI and support network evolution.
Download Datasheet
Feature | Specification |
Switching capacity | 24 Gbit/s |
Packet forwarding rate | 18 Mpps |
GE RJ45 | 8 (PoE+) (1G/100M/10M) |
GE SFP | 4 (1G) |
Certification | EMC certification Safety certification Manufacturing certification |
Chassis material | Metal |
Static power consumption [W] | 17.19 |
Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions: 43.6 mm x 320.0 mm x 210.0 mm (1.72 in. x 12.6 in. x 8.27 in.) Maximum dimensions: 43.6 mm x 320.0 mm x 217.0 mm (1.72 in. x 12.6 in. x 8.54 in.) |
Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 465.0 mm x 380.0 mm (3.54 in. x 18.31 in. x 14.96 in.) |
Installation type | Rack mounting, Desk mounting, Wall mounting |
Weight without packaging [kg(lb)] | 2.5 (5.51) |
Weight with packaging [kg(lb)] | 3.05 kg (6.72 lb) |
Typical power consumption [W] | 19.99 |
Maximum power consumption [W] | Without PoE: 25.09 W / Full PoE load: 166.65 W (PoE: 125 W) |
Number of fans modules | 1 |
Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
Power supply mode | AC built-in |
Input voltage range [V] | AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz |
Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
Types of fans | Built-in |
Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
Airflow direction | Air intake from left and front, air exhaustion from right |
