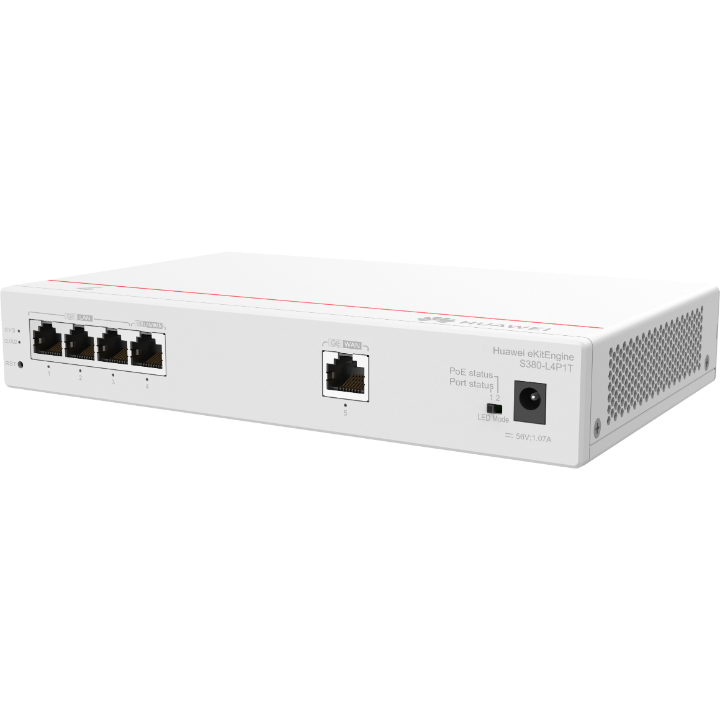

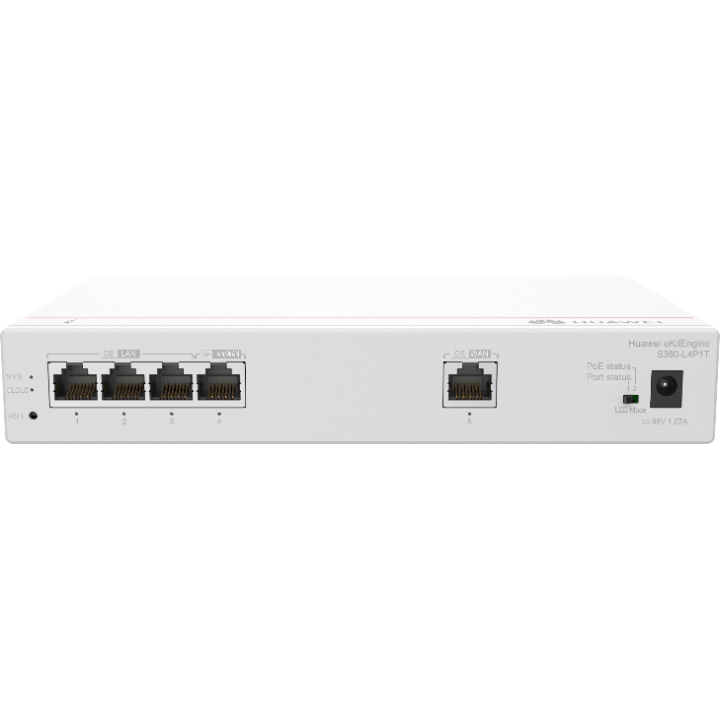

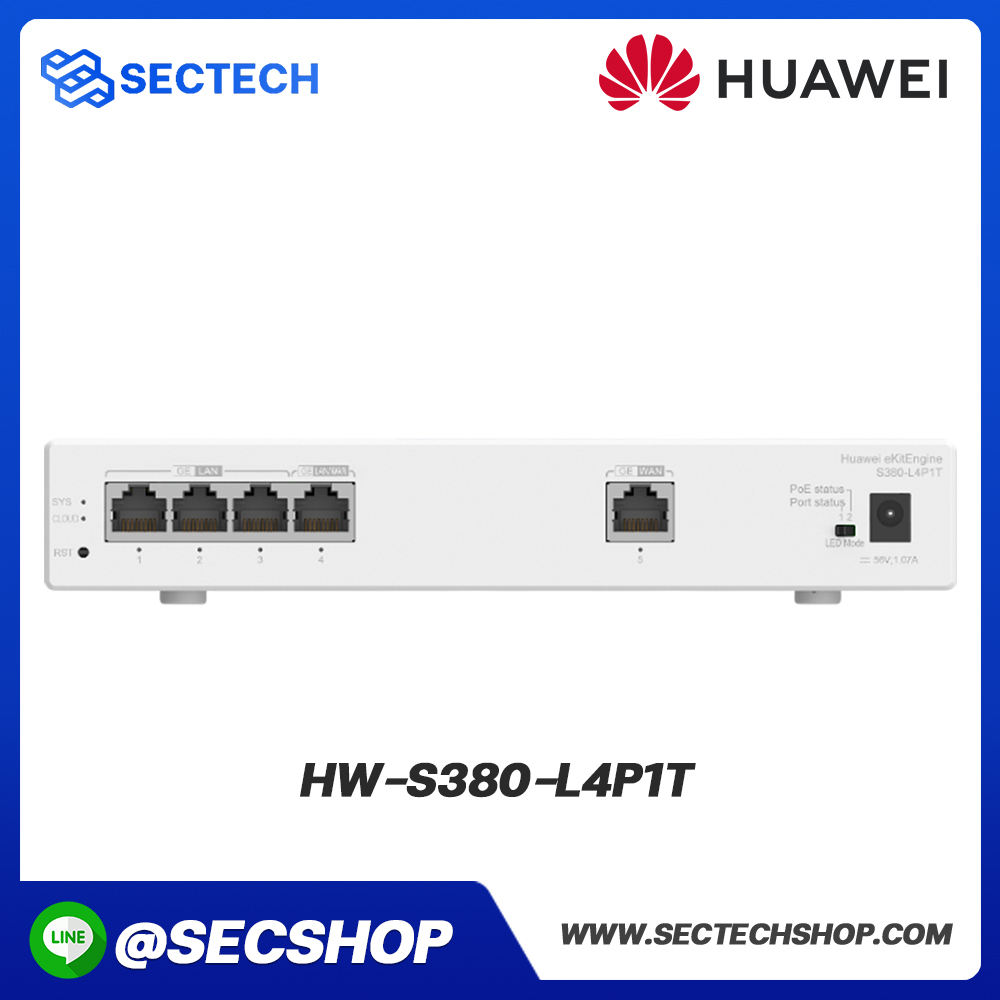

เราเตอร์เกตเวย์ Huawei รุ่น HW-S380-L4P1T
Gateway | Number of managed Aps: 32 | Maximum user: 200 | Switching Capacity: 8Gbps | Packet forwarding rate: Upload:300 Kpps, download:420 Kpps | Egress bandwidth: 1Gbps | 1 x 10/100/1000BASE-T port(WLAN) + 4 x 10/100/1000BASE-T ports(LAN) | PoE+
8950.00฿
เราเตอร์เกตเวย์ Huawei รุ่น HW-S380-L4P1T
Gateway | Number of managed Aps: 32 | Maximum user: 200 | Switching Capacity: 8Gbps | Packet forwarding rate: Upload:300 Kpps, download:420 Kpps | Egress bandwidth: 1Gbps | 1 x 10/100/1000BASE-T port(WLAN) + 4 x 10/100/1000BASE-T ports(LAN) | PoE+
Highlight Features
Provides basic interface features including VLAN support (up to 16 VLANs), Jumbo frames, and Port Up/Down detection.
Supports versatile port types such as access, trunk, and hybrid, along with port-based VLAN assignment.
Features automatic MAC address learning and aging, static MAC entries, and MAC filtering for network efficiency.
Enables IPv4 unicast routing and static routing for effective traffic direction.
Optimizes WAN performance with load balancing based on terminal IP addresses and connections.
Supports essential user access protocols including DHCP server/client, DNS client, PPPoE client, ACL, and NAT.
Offers multiple device management options via a Web system, mobile App, and SSH.
Facilitates device maintenance with diagnostic tools like Ping, Tracert, and one-click diagnosis.
Includes IPsec VPN support for secure, encrypted remote connectivity.
Download Datasheet
Feature | Specification |
Switching Capacity | 8Gbps |
Packet forwarding rate | Upload:300 Kpps, download:420 Kpps |
Egress bandwidth | 1Gbps |
Maximum user | 200 |
Managed APs | 32 |
GE RJ45 | 5 (4 PoE+) (1G/100M/10M) |
WAN ports | 1 x GE WAN |
LAN ports | 4 x GE LAN (50 W PoE+) |
PoE | Supported |
Maximum PoE power consumption [W] | 50 |
Dimensions without packaging (H x W x D) | Basic dimensions: 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.) Maximum dimensions: 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.) |
Dimensions with packaging (H x W x D) | 90.0 mm x 285.0 mm x 180.0 mm (3.54 in. x 11.22 in. x 7.09 in.) |
Installation type | Desk mounting, Wall mounting |
Chassis material | Metal |
Weight without packaging [kg(lb)] | 0.9 kg (1.98 lb) |
Weight with packaging [kg(lb)] | 1.1 kg (2.43 lb) |
Typical power consumption [W] | 7.19 |
Maximum power consumption [W] | 61.65 W (PoE: 50 W) |
Long-term operating temperature | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
Long-term operating relative humidity | 5% RH to 95% RH, non-condensing |
Power supply mode | Power adapter |
Input voltage range [V] | Power adapter input: 90–290 V AC; 47–63 Hz |
Power supply surge protection [kV] | Power adapter: ±6 kV in differential mode and ±6 kV in common mode |
Heat dissipation mode | Natural heat dissipation |
Certification | EMC certification Safety certification Manufacturing certification |
