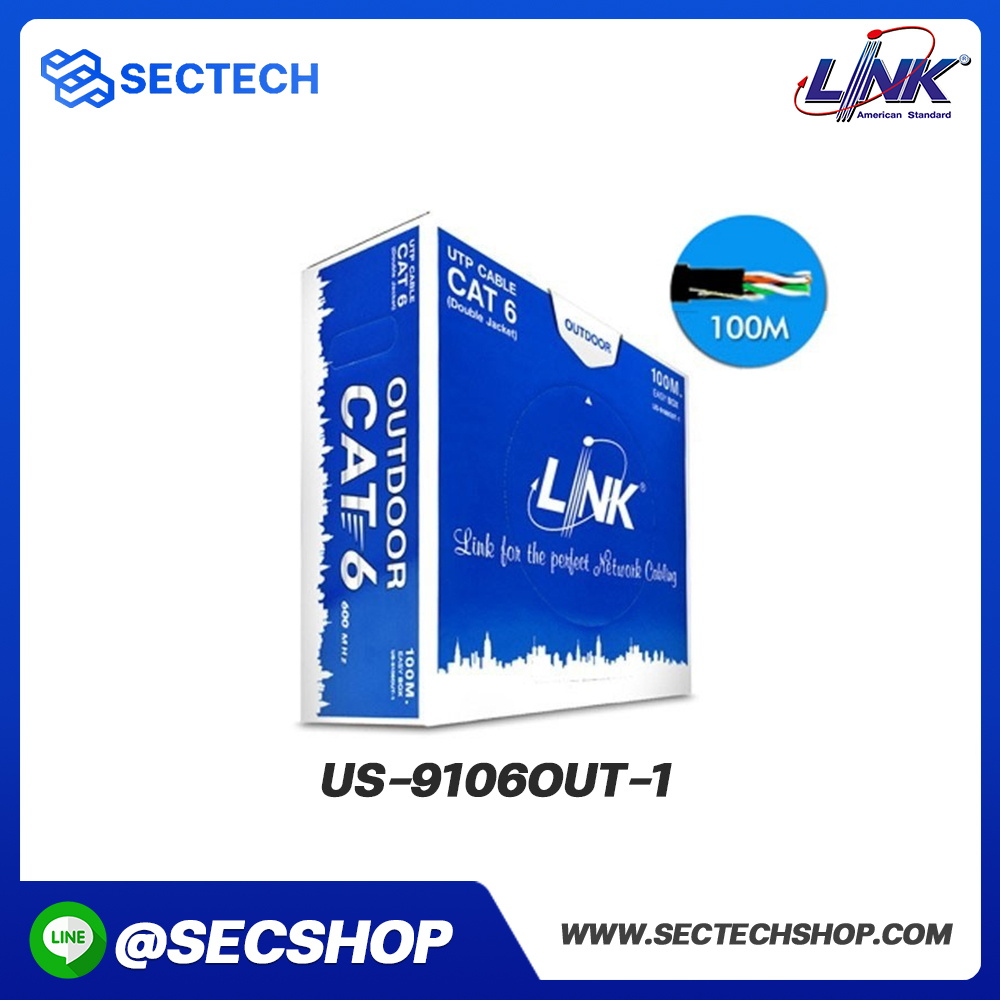

สายแลน LINK รุ่น US-9106OUT-1

สายแลน US-9106OUT-1 แบบใช้งานภายนอกอาคารเปลือกหุ้มเป็น PE สีดำหนา 2 ชั้น แข็งแรงทนต่อสภาพอากาศและสิ่งขีดข่วน, มาตรฐาน Category 6 รองรับความเร็วสูงระดับ 10 Gigabit Ethernet

1960.00฿

สายแลน LINK รุ่น US-9106OUT-1

สายแลน US-9106OUT-1 แบบใช้งานภายนอกอาคารเปลือกหุ้มเป็น PE สีดำหนา 2 ชั้น แข็งแรงทนต่อสภาพอากาศและสิ่งขีดข่วน, มาตรฐาน Category 6 รองรับความเร็วสูงระดับ 10 Gigabit Ethernet และปริมาณการรับส่งข้อมูล (Bandwidth) ที่ 600 MHz, สายภายในเป็นลวดทองแดงขนาดตัวนำไฟฟ้า 23 AWG (Conductor Solid Bare Copper) มี Filler Slot กันคู่สายภายในออกเป็น 4 ส่วน สายมีขนาดเส้นผ่าศูนย์กลาง 6.2 มม. ความยาว 100 เมตร บรรจุภายในกล่องแบบ Easy Box สะดวกและง่ายในการดึงสายออกมาใช้งาน


Highlight Features

  • Conductor : 23AWG Solid Bare Copper

  • Insulation : HDPE

  • Filler Slot : FRPE

  • Ripcord : Under Jacket

  • Inner Jacket : Lead Free, FR-PVC

  • Outer Jacket : UV-Proof, PE

  • Messenger Wire : Galvanize Steel Wire, 1.3mm for US-9106MD

Download Datasheet

Feature

Specification

Brand

Link

Model

US-9106OUT-1

Device Type

CAT 6 UTP Cable (Outdoor), CMX

Installation Site

Indoor and Outdoor

Suitability

High-speed outdoor wiring for computer networks, CCTV systems, Network Cameras, IP Phones, PLC systems, Data, and Control systems

Standards

ANSI/TIA-568-C.2 Category 6, ISO/IEC 11801:2002 Class E, EN 50173-1 Category 6, ICEA S-102-700 Category 6, EN 50288-6-1, NEMA WC 66, IEC 61156-5, ASTM D4566-98, UL444 CMX, NEC800, UL E197771, RoHS Compliant, PoE, PoE+ (IEEE 802.3af/at) Support

Data Transfer Rate

Up to 10 Gigabit Ethernet

Bandwidth

600 MHz

Color

Black

Material

Double-layer PE jacket (Black), Internal Filler Slot made of FRPE, 23AWG Solid Bare Copper conductors

Flame Rating

CMX (Communication Metallic X) - UV resistant and flame retardant (does not spread fire along the cable)

Dimensions

Diameter 7.4 mm, Length 305 meters (1,000 feet)

Package Contents

Easy Box for easy cable dispensing

Warranty

30 Years

Price (Excluding VAT)

1,980 THB (Delivery in Bangkok and perimeter)

Services

- Design LAN and WAN network systems


- UTP LAN cable installation for homes and offices


- Maintenance, troubleshooting, and upgrading UTP LAN systems
