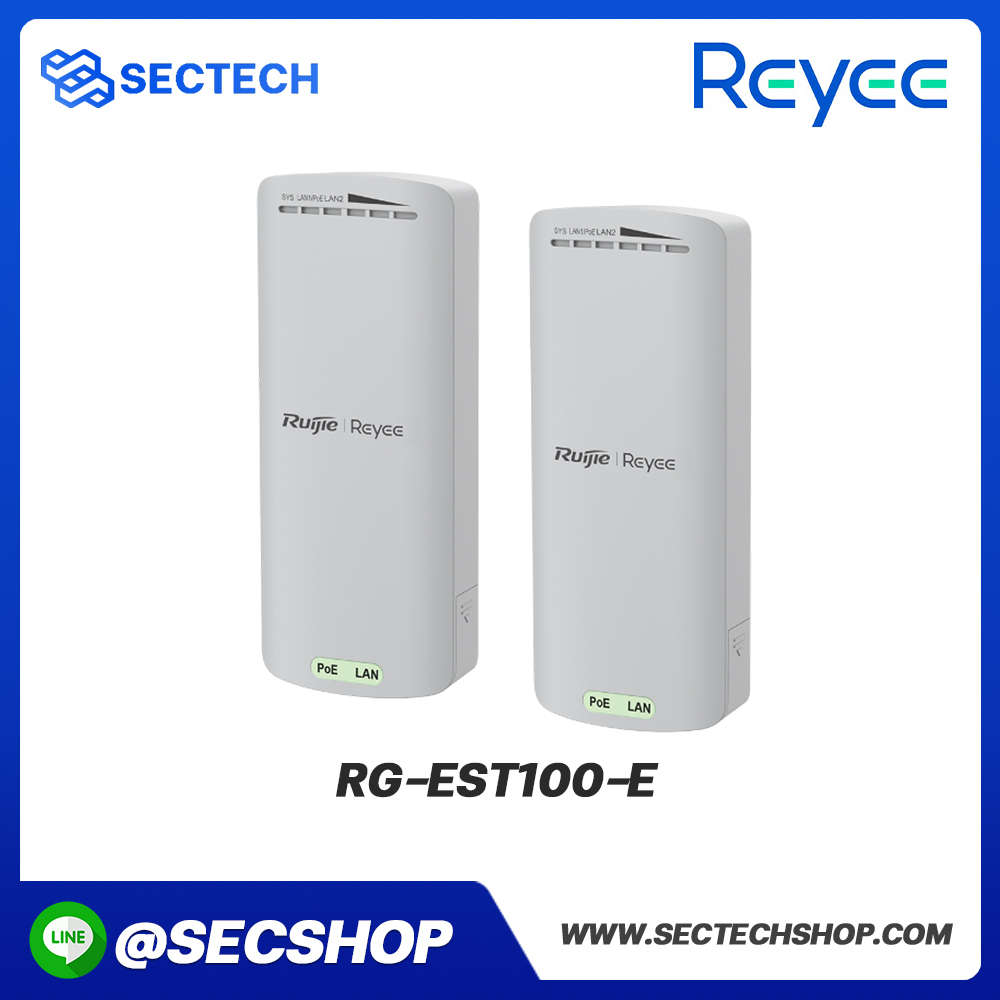

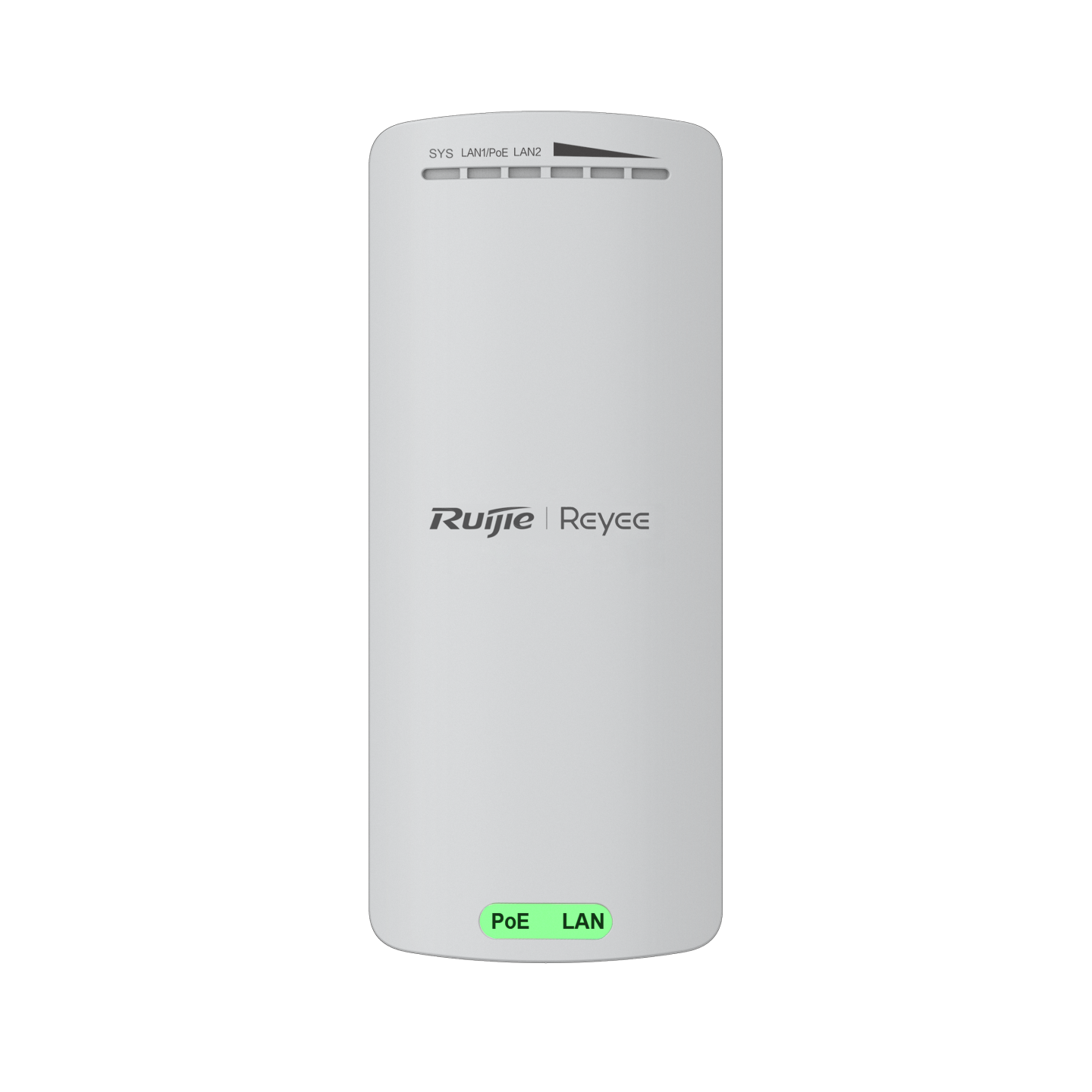

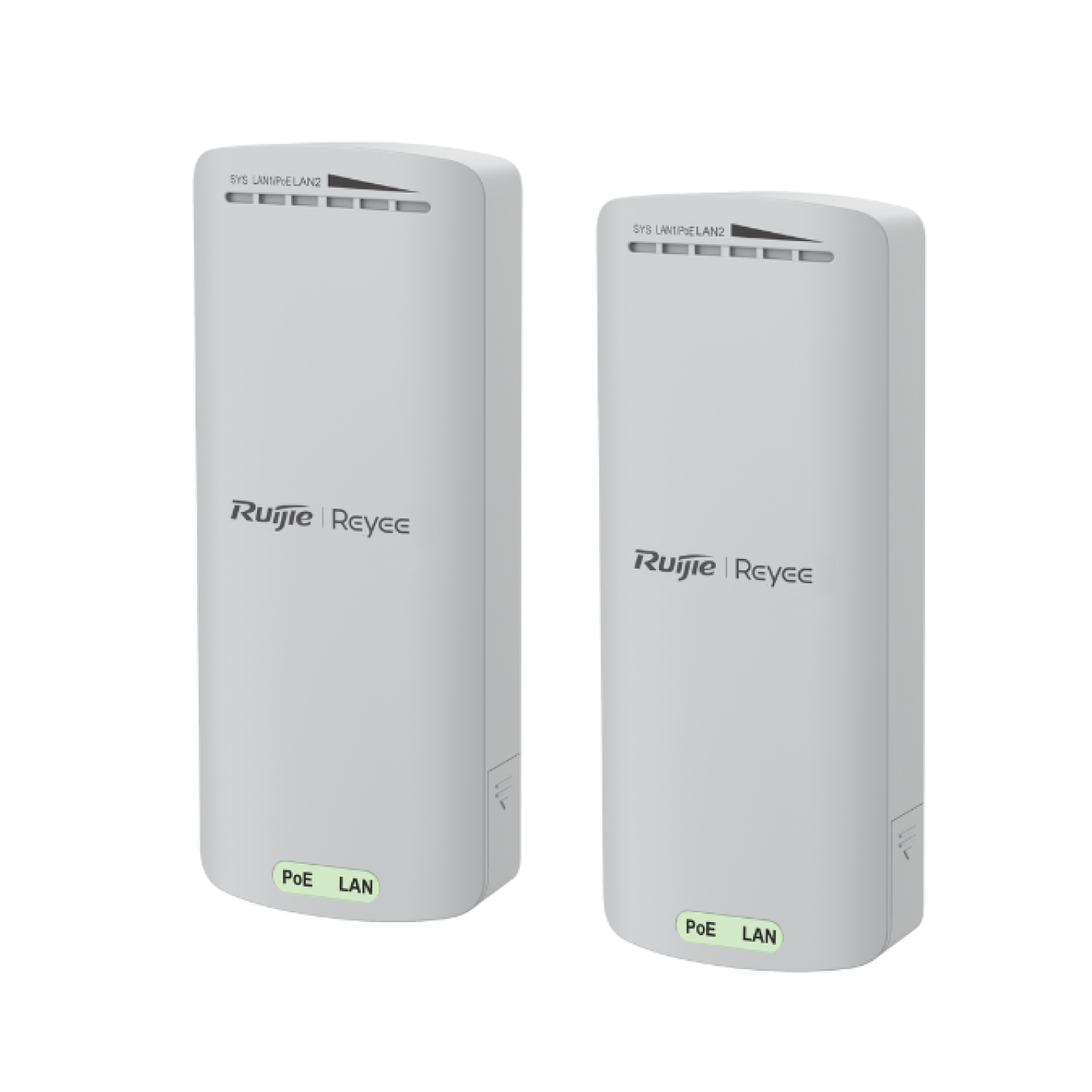

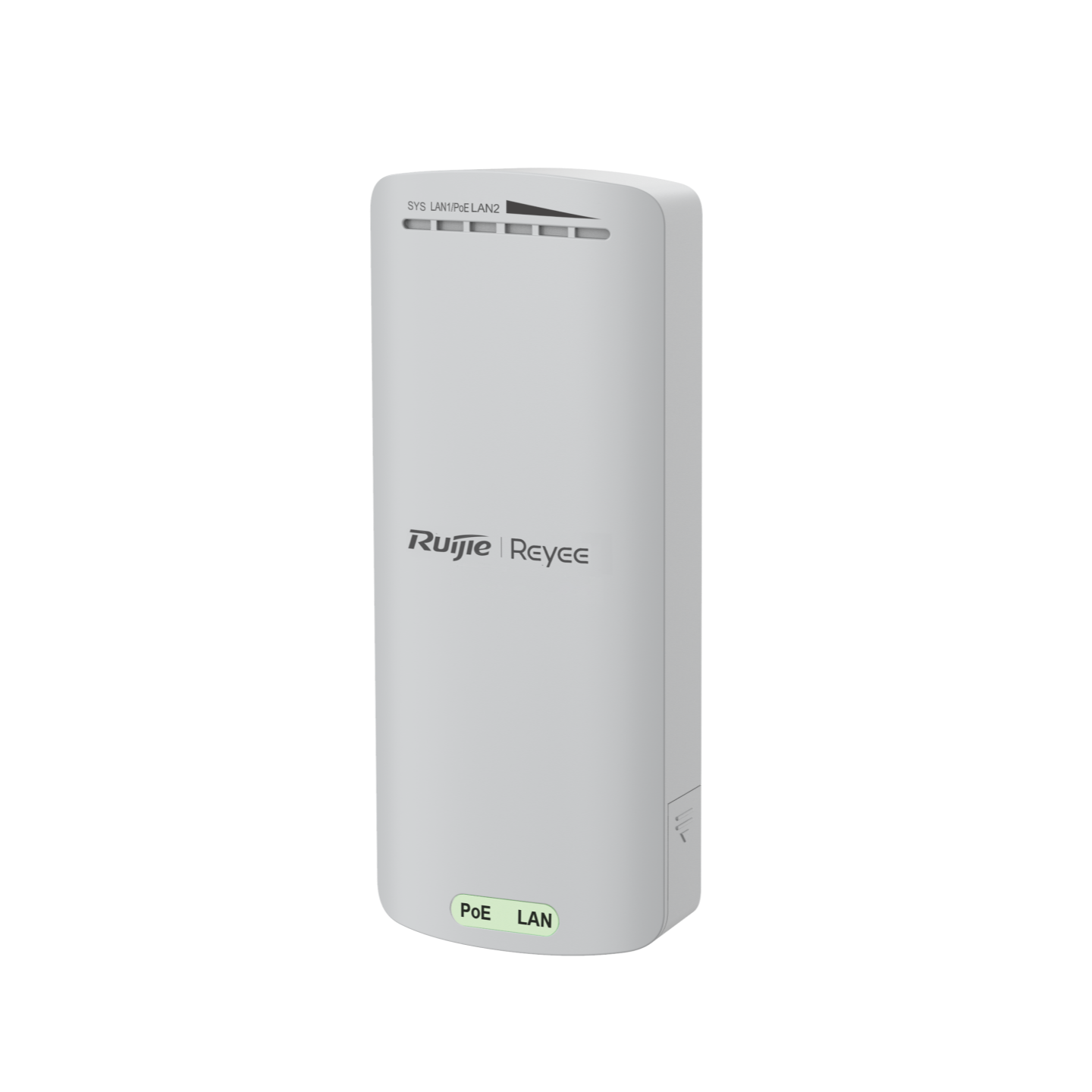

บริดจ์ไร้สาย Reyee รุ่น RG-EST100-E
2.4GHz Dual-stream 500m Wireless Bridge
1480.00฿
บริดจ์ไร้สาย Reyee รุ่น RG-EST100-E
2.4GHz Dual-stream 500m Wireless Bridge
Highlight Features
RG-EST100-E can easily transmit data from 500m away in real time
Factory-free configuration, without complex alignment
IP55 Weatherproof, -30℃~60℃ guarantee stable operating at outdoor or elevator environment
Support maximum 10 3MP cameras loading at 100m, 5 3MP cameras loading at 500m
Visually Intuitive statistics monitoring on Ruijie cloud, easy maintenance at remotely
Download Datasheet
รายการ | รายละเอียด |
|---|---|
Radio design | Single-radio |
Spatial streams | 2 spatial streams |
Radio | 2.4 GHz, 2×2 MIMO |
Channel width (2.4 GHz) | Auto / 20 / 40 MHz |
Antenna orientation (Horizontal) | 70° |
Antenna orientation (Vertical) | 70° |
Product dimensions (W × D × H) | 68.7 × 42 × 165.5 mm (2.70 × 1.65 × 6.52 in.) |
PoE In ports | 1 |
Operating temperature | –30°C ถึง +60°C |
Operating humidity | 5%–95% RH (non-condensing) |
MTBF | 400,000 ชั่วโมง (ประมาณ 45 ปี) |
IP rating | IP55 |
Bridge speed test | Yes |
SON | Yes |
AI heatmap | No |
Restart via Ruijie Reyee App | Yes |
SNMP v1 / v2c / v3 | No |
