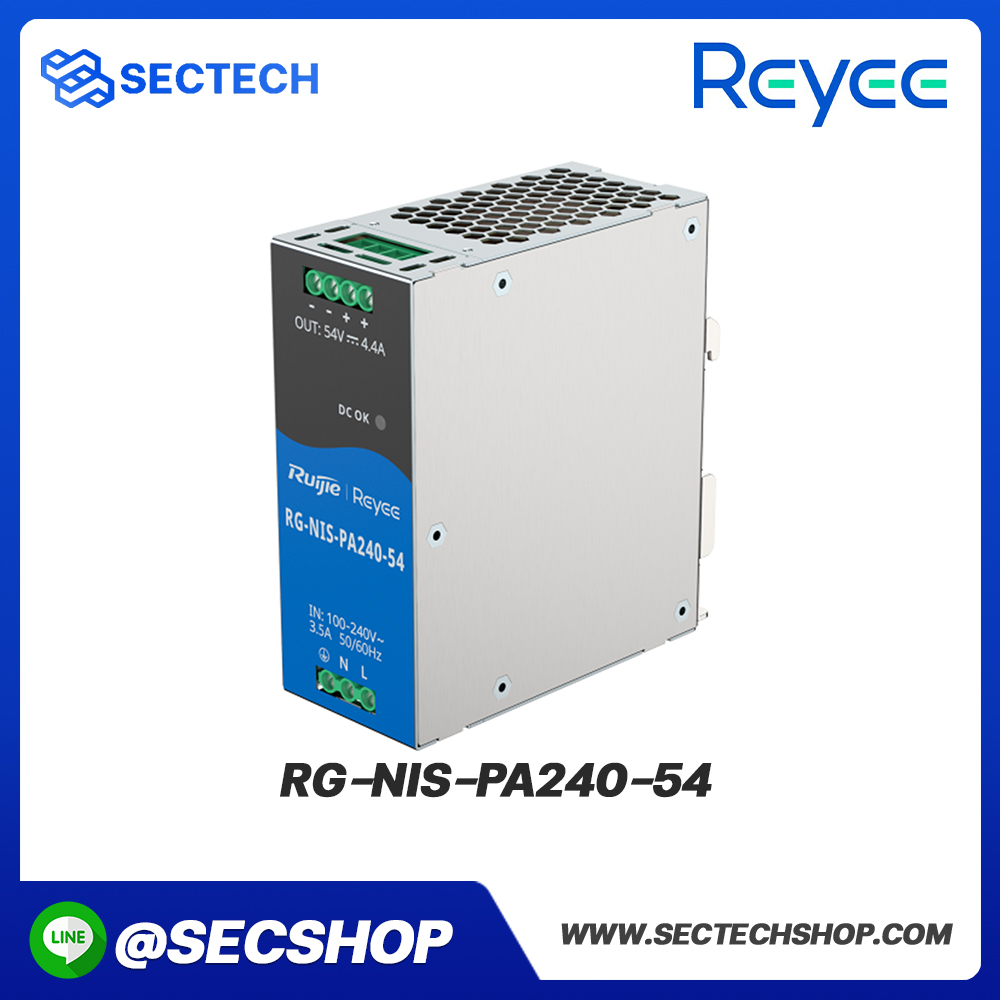

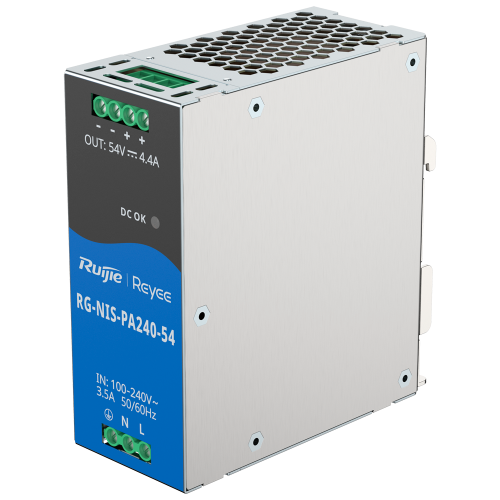

พาวเวอร์ซัพพลาย Reyee รุ่น RG-NIS-PA240-54
Power Supply
4220.00฿
พาวเวอร์ซัพพลาย Reyee รุ่น RG-NIS-PA240-54
Power Supply
Highlight Features
Universal 90-264VAC input voltage
Output short circuit, over-current, over-voltage, over-temperature protection
Wide operating temperature range of -40°C to +70°C
Download Datasheet
Feature | Specification |
Model | RG-NIS-PA120-54 / RG-NIS-PA240-54 |
Dimensions (W x D x H) | 35 x 100 x 125mm / 52 x 110 x 125mm |
Net Weight | 0.48kg / 0.75kg |
Mean Time Between Failure (MTBF) | >150K |
Safety Compliance | EN 62638-1 |
Warranty | 3 years |
Nameplate Input Voltage Range | 100-240 V AC |
Input Voltage Range | 90-264 V AC |
Input Frequency Range | 50/60 Hz |
Input Current | 4 A / 3.5 A |
Output Voltage Range | 52.38-55.62 V DC |
Output Current | 2.2 A / 4.4 A |
Power Consumption | ≤120W / ≤240W |
Power Supply Surge Protection | Common mode: 4KV, Differential mode: 2KV |
Number of Fans | Fanless |
Fan Speed Control | Fanless |
Acoustic Noise Level | Noiseless |
Max. Heat Dissipation | 410.4 BTU/hr / 820.8 BTU/hr (220V/50Hz) |
Operating Temperature | -40 to 70°C (with derating) |
Storage Temperature | -40 to 85°C |
Operating Humidity | 5% to 95% RH (non-condensing) |
Storage Humidity | 5% to 95% RH (non-condensing) |
Electrostatic Discharge (ESD) Protection | Air discharge: 8KV, Contact discharge: 6KV |
Casing | Metal |
Mounting | DIN-rail Mounting |
LEDs | System: DC OK (Green) |
Operating Altitude (m) | -500-5000m |
Certification | CE |
EMC | EN 55032, IEC61000-4-2, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, EN 61000-4-11, IEC6100-3-2, IEC6100-3-3 |
Gross Weight | 0.57kg / 0.87kg (packages included) |
Package Dimensions (W x D x H) | 516 x 356 x 195mm / 539 x 265 x 180mm |
