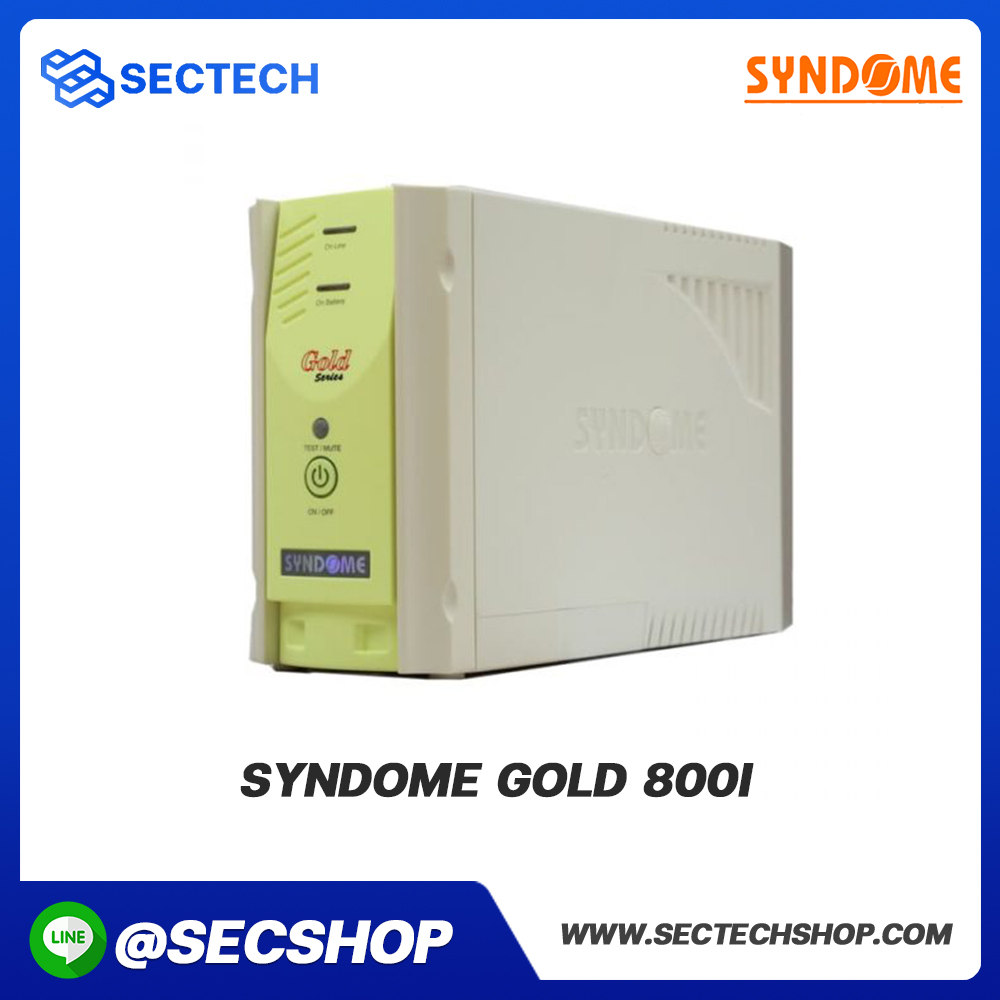

เครื่องสำรองไฟฟ้า SYNDOME รุ่น GOLD-800I

เครื่องสำรองไฟฟ้า GOLD-800I ขนาดกำลังจ่าย 800 Voltamp, 480 Watt ระบบ Line Interactive with Stabilizer ปรับแรงดันไฟฟ้าอัตโนมัติ ป้องกันปัญหาไฟฟ้าเกินหรือไฟตก เหมาะสำหรับการใช้งานในที่ที่มีความผันผวนของแรงดันไฟฟ้า

2630.00฿

เครื่องสำรองไฟฟ้า SYNDOME รุ่น GOLD-800I

เครื่องสำรองไฟฟ้า GOLD-800I ขนาดกำลังจ่าย 800 Voltamp, 480 Watt ระบบ Line Interactive with Stabilizer ปรับแรงดันไฟฟ้าอัตโนมัติ ป้องกันปัญหาไฟฟ้าเกินหรือไฟตก เหมาะสำหรับการใช้งานในที่ที่มีความผันผวนของแรงดันไฟฟ้า มี 4 เต้ารับไฟฟ้าขาออกแบบ Universal เสียบได้ทั้งขากลมและขาแบน พร้อมขากาวน์ ระยะเวลาในการสำรองไฟที่ 20-30 นาที (เทียบโหลดคอมพิวเตอร์พร้อมจอ 1 ชุด) ควบคุมการทำงานด้วย Microprocessor, จ่ายกำลังไฟได้เต็ม VA/Watt, เปลี่ยน Battery อย่างง่ายดายด้วยมือเปล่า, มี TEL Line Protection ระบบป้องกันไฟกระชากทางสายโทรศัพท์


Highlight Features

  • ชื่อรุ่น : GOLD-800I

  • กำลัง : 800VA/480W

  • น้ำหนัก : 6.2 Kg.

  • ชนิดของแบตเตอรี่ : Sealed Lead Acid Maintenance free

  • ขนาด : 95 x 295 x 183 mm.

  • Input: 220V ±25%

  • Output: 220V ±10%

  • Charging Time: About 4-6 Hours

  • เครื่องสำรองไฟฟ้าชนิด Line Interactibe with Stabilizer

  • จ่ายกำลังไฟได้เต็ม VA/Watt

  • ควบคุมการทำงานด้วยไมโครคอนโทรลเลอร์สมบูรณ์แบบ

  • ปรับแรงดันไฟฟ้าได้โดยอัตโนมัติ สามารถใช้งานได้ทั่วประเทศ

  • สามารถเปิดเครื่องโดยใช้ไฟจากแบตเตอรี่

  • ผู้ใช้สามารถเปลี่ยนแบตเตอรี่ได้เองอย่างง่ายดายโดยไม่ต้องปิดเครื่อง (ในสภาวะปกติ)

  • ตรวจสภาพแบตเตอรี่เองโดยอัตโนมัติ

  • มีอุปกรณ์ป้องกันไฟกระชากและสัญญาณรบกวน

  • ระบบป้องกันไฟกระชาก

  • ระบบปิดเครื่องอัตโนมัติ (เมื่อไม่มีการใช้งาน)

  • Switch ทดสอบแบตเตอรี่ได้ด้วยตนเอง

Download Datasheet

Feature

Specification

Brand

SYNDOME

Model

GOLD-800I

Device Type

Uninterruptible Power Supply (UPS)

Key Features

• Line Interactive with Stabilizer system for automatic voltage regulation


• Provides full VA / Watt power output


• Controlled by advanced Microprocessor


• Automatic voltage adjustment suitable for all regions in Thailand


• Cold start capability using battery power


• Hot Swap battery tray for easy manual replacement without shutdown


• Battery test switch and alarm mute function


• Automatic battery self-test system


• Backup time of 20-30 minutes (depending on load)


• Surge protection and noise filtering system


• 4 x Thai Universal Sockets supporting round, flat, and TIS plugs


• TEL Line Protection for phone line surge defense


• Auto-shutdown system when no load is detected

Standards

TIS 1291 Part 3-2555 Class C1, ISO9001 (Quality), ISO14001 (Environment)

Power Rating

800VA / 480W

Output Outlets

3 + 1 bypass (Universal Socket Outlet)

Electrical System

• Input Voltage: 220 VAC ± 25%


• Input Frequency: 50 Hz ± 10%


• Output Voltage (Stabilizer Mode): 220VAC ± 10%


• Output Voltage (Backup Mode): 220 VAC ± 5%


• Output Frequency: 50 Hz ± 0.1%


• Output Wave Form: Simulated Sinewave

Protection & Operation

• Operation System: On-line protection / Line interactive


• Overvoltage Protection: Power line to backup 220V AC +25%


• Undervoltage Protection: Power line to backup 220V AC -25%


• Transfer Time: Less than 2 ms (Typical)


• Battery: 12V/7Ah x 1 Unit (Sealed lead acid maintenance free)


• Charging: Constant voltage and current limit


• Backup Time: 20 - 30 minutes (Depends on Load)


• Recharge Time: 4-6 hours (to 90% after full discharge)


• Output Protection: Short circuit and Overload protection


• Circuit Protection: Fuse on line mode & UPS cut-off on backup mode


• Battery Protection: Overcharge protection & Low battery cut-off

Display & Interface

• Test Switch / Alarm Mute button


• Audio Alarms: AC fail, Overload, Low battery, UPS fault (Continuous)


• LED Indicators: Green (AC/On-line), Red (Backup/On-battery)

Dimensions

95 x 295 x 183 mm (W x D x H)

Weight

6.2 kg

Warranty

2 Years
