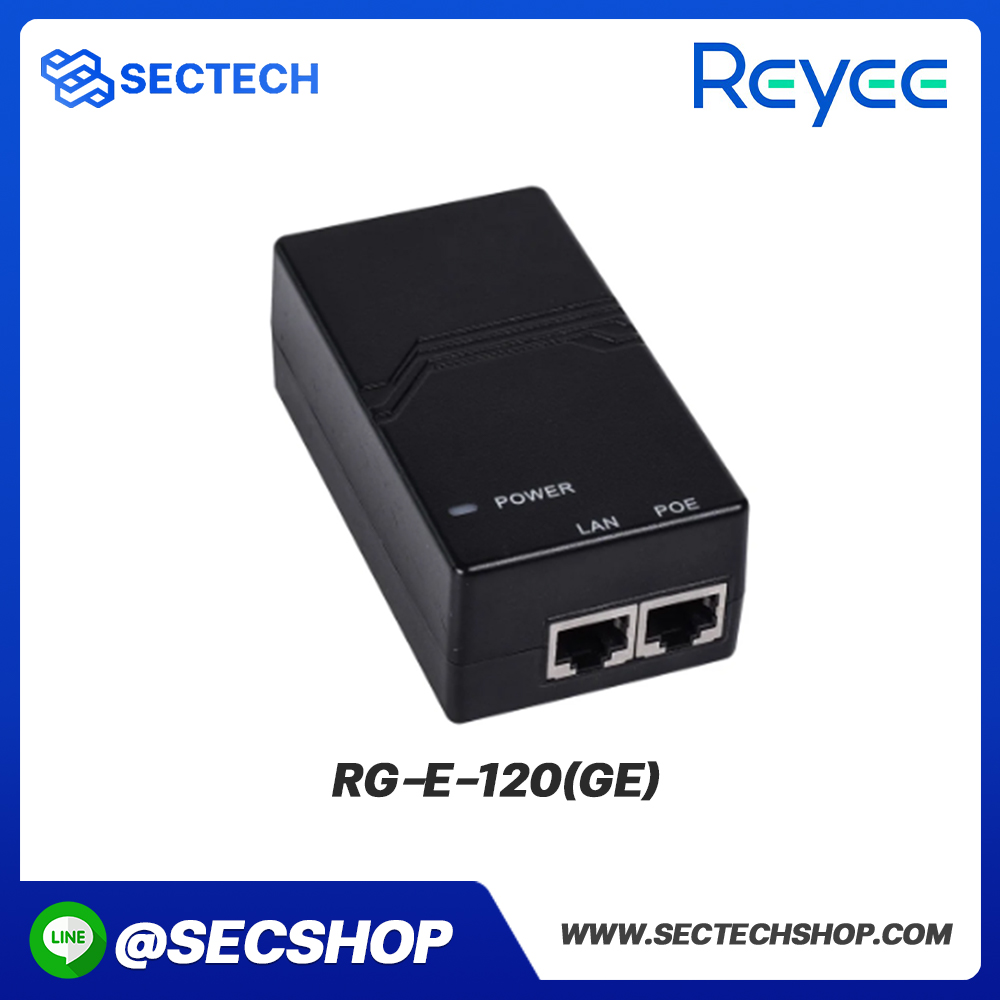

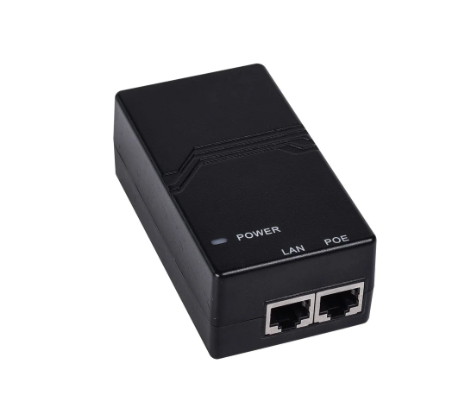

Power Injectors Reyee รุ่น RG-E-120(GE)
Reyee Power Injectors
760.00฿
Power Injectors Reyee รุ่น RG-E-120(GE)
Reyee Power Injectors
Highlight Features
Up to 30W of Power (RG-E-130(GE) only)
IEEE 802.3at Compliant with 2-event Classification (RG-E-130(GE) only)
Compatible with all IEEE 802.3af standards
Safe: Low Power Devices Receive Only the Power They Need
Safe and Reliable Power to WLAN Access Points
Automatic Detection and Protection of Non-standard Ethernet Terminals
Supports 10/100/1000Base-T Applications
Compact Design Fits Easily in WLAN Access Point Installations
Download Datasheet
Feature | Specification |
Model | RG-E-120(GE) / RG-E-130(GE) |

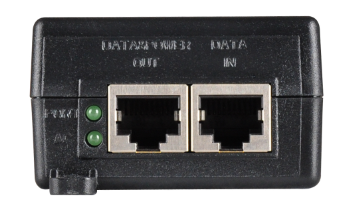

Ports | 10/100/1000 Mbps Copper port (RJ-45) / 10/100/1000 Mbps PoE Copper port (RJ-45) |
Output Power Voltage | 50V DC (RG-E-120) / 53V DC (RG-E-130) |
Output Port Power | 15.4W (RG-E-120) / 30W (RG-E-130) |
Dimensions (W x H x L) (mm) | 53 x 32.5 x 140 (RG-E-120) / 87.9 x 51.3 x 166 (RG-E-130) |
Weight | 200g (RG-E-120) / 350g (RG-E-130) |
Operating Temperature | 0°C to 45°C |
Storage Temperature | -30°C to 85°C |
Operating Humidity | 5% to 90% (non-condensing) |
Storage Humidity | 5% to 95% (non-condensing) |
Operating Altitude | 0 to 3048m |
Regulatory Compliance | IEEE 802.3at, IEEE 802.3af RoHS Compliant, WEEE Compliant, CE |
MTBF | >100,000 hours @25°C |
Electromagnetic Emission & Immunity | FCC Part 15, EN 55022 Class B (Emissions) EN 55024 (Immunity), VCCI |
Safety Approval | UL/cUL Per EN 60950-1, GS Mark Per EN 60950-1 |
